Model:
FZRN25A-12D/T125-31.5
| F | Load break switch |
| Z | Arc-extinguishing chamber |
| R | With fuse |
| N | Indoor |
| 25 | Design code |
| A | Narrow type, double fracture |
| 12 | Rated voltage |
| D | With grounding switch |
| T | Spring operating mechanism |
| 125 | Rated current |
| 31.5 | Rated short time current |
Overview:
FZN25-12 series vacuum load switches and combined electrical appliances are suitable for 10-12kV, 50Hz three-phase AC power distribution systems. They have the advantages of no pollution, no fire hazard, no explosion hazard, and can be operated frequently. It can be used as the main component of ring main unit, box-type substation or other types of switch cabinets for the control and protection of inverters, cables, overhead lines and other power equipment. It is widely used in power distribution systems in factories, communities, high-rise buildings, schools, parks and other places.

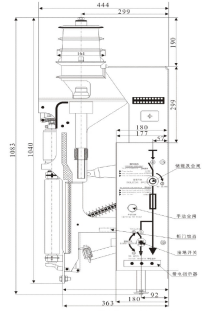

Dimension:
Environment condition:
1.Upper limit of ambient air temperature: +40°C, lower limit: -10°C;
2. The altitude: ≤ l000m;
3. The daily average relative humidity is ≤ 95%, and the monthly average is ≤ 90%;
4. The seismic intensity does not exceed 8 degrees;
5. Places without fire, explosion hazard, chemical corrosion and severe vibration;
6. The surrounding air should not be significantly polluted by corrosive or flammable gases and water vapor.
Order information
1.Model, Name, Quantity
2.Direction of operation
3.Rated voltage, current
4.Rated voltage of operating mechanism
5.With or without panel
6.With or without grounding switch
7.If fuse is required, provide fuse current rating
