1. Versatile Application

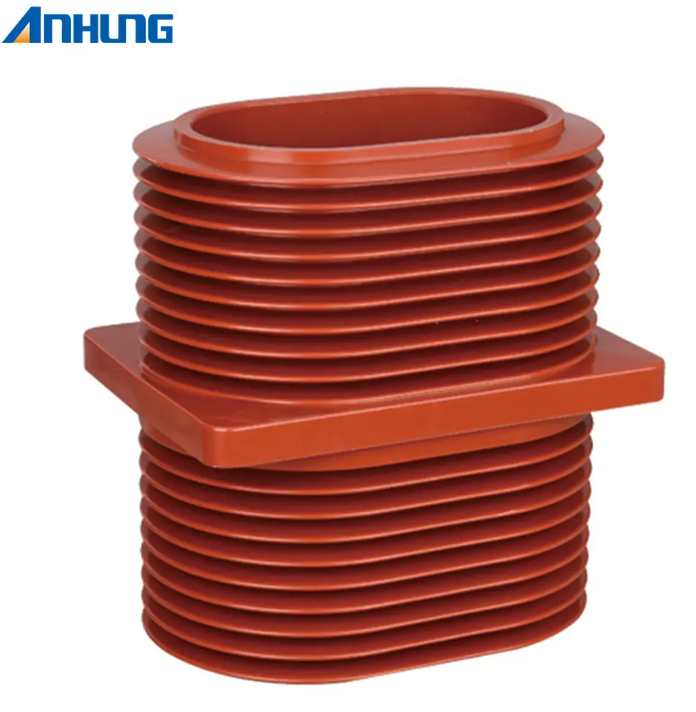

The material out of which AHTG3-24KV175X255X310 Epoxy Resin Wall Bushing is constructed is epoxy resin which is strong and durable against moisture, dirt, and dust. Thus, it does not require special maintenance and provides long-term value.
2. Superior Performance
This bushing possesses external dimensions of 128 mm (100×100) and a height of 225 mm, meaning that it is compact and light which eases its installation in different electrical setups. Furthermore, this bushing’s small size masks its incredible power as it provides reliable insulation as well as preventing electrical faults.
3. Compact Design
A 24KV tolerance has been proven to this wall bushing making it a splendid candidate for systems with rated voltage up to 10KV. Those are equally useful in industrial settings and commercial controls where high voltage isolation is needed.
4. Simplified Setup
Setting up the AHTG3-24KV175X255X310 Epoxy Resin Wall Bushing is simple. During installation, the busbar goes through the hole, which makes it seamless during the installation. No elaborate circuitry or configuration has to be done.
5. Effective Within Extreme Environments
The bushing is intended to be use in regions where the relative humidity is as high as 85% at 20′ C and can withstand temperatures between +5′ C – +40′ C. It is therefore useful even where the environmental conditions are not very favorable.
6. Minimal Upkeep
This bushing has been made in such a way that after some minor initial maintenance it can be left unattended. It is dirt-tight and moisture-tight, meaning the surface only needs occasional cleaning. This maximizes uptime and efficiency throughout the entire system for years.
Just like any other electrical device, the AHTG3-24KV175X255X310 Epoxy Resin Wall Bushing has specific requirements for best performance. Here are some points to consider.
Indoors Only: This bushing can be installed outdoors, but it will only work in a optimal controlled environment.
Altitude Restrictions: The bushing functions well for installations located at or near sea level, as it works without issues up to 1000 meters.
Temperature Restrictions: The AHTG3-24KV175X255X310 bushing works well within a temperature range of +5ºC to +40ºC. This product may be unsuitable to technological processes outside of these parameter.
Not Moderately Harsh Gases or Corrosive Medias: The site should be devoid of steam, dust, or other gases that can react with the insulation and greatly hinder the efficiency of the unit, which will allow for maximum insulation performance.
Here are the primary reasons that make this AHTG3-24KV175X255X310 Epoxy Resin Wall Bushing a must have for your next project:
1. Exceptional Insulation Technology
The insulation epoxy resin material offers exceptional insulation, which protects your system against shorts or electrical failures. This goes a long way in safeguarding the equipment and the people who are working on high voltage systems.
2. Consistent Functionality
This wall bushing is also a reliable option for your electrical needs because of its consistent performance. This wall bushing handles 24KV and is built to operate in varying environmental conditions.
3. Long-term Maintenance Free
The AHTG3-24KV175X255X310 wall bushing is hassle free once it is installed. The only care it requires is periodic cleaning of the surface dirt.
4. Quick to Integrate Design
The bushing’s design is not only simple but also intuitive meaning that it can be integrated easily into your system. Its efficient construction allows for quick setup which saves time and energy.
5. Designed for Harsh Environments
This epoxy resin bushing is designed to last so it guards your system from dirt, moisture, and other harmful elements ensuring long term protection.
6. Ideal for High Voltage Systems
If you have any device whose rating is equal to or lower than ***10KV***, this bushing is perfect for use as an insulator, as well as for isolating the electrical systems so that failures do not occur.
Conclusion
AHTG3 24KV175X255X310 Epoxy Resin Wall Bushing is a great addition to your electric system, and is incredibly low maintenance. It delivers performance that is unmatched, is very easy to install, and requires very little maintenance. You can read more and purchase it at AHTG3 24KV175X255X310 Epoxy Resin Wall Bushing Product Page.
For over 15 years now, ANHUANG has proven to be a household name for many electrical components manufacturers. They focus on producing medium voltage cable accessories, electric components, and terminal joints. Their components are manufactured, keeping in mind the quality and reliability. Their team is ever-ready to assist customers with OEM and ODM services so that their products are tailored as per the customer’s requirements.
