How Do High-Voltage Bushing Wells Guarantee Electrical Safety and Reliability?

Date:07-11-2025



High voltage, safety, and functionality are standard in the electrical industry. The electrical installations, especially the pad-mounted transformers, submersible transformers, and switchgear, need parts that last long and provide a stable and insulated connection. One such critical part is the 15kV/24kV 200A Bushing Well built to handle these needs.



Suppose you’re dealing with a high-voltage circuit. In that case, the 200A Bushing Well is a necessary part of the electrical system to keep the electrical grid safe and reliable, whether in the city or out in the country. In this post, we will explain everything in detail: what it is, what it provides, where it is used, and why ANHUANG, with its extensive expertise in the development and production of medium-voltage electrical components, is the most reliable name in providing these products.





Product Overview

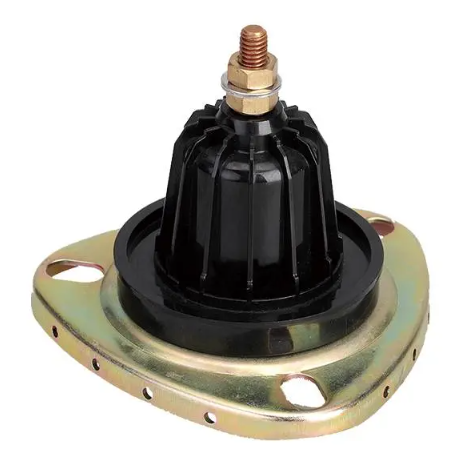

15kV/24kV 200A Bushing Well: This is an electrical high-voltage element used to operate power distribution systems safely and effectively. It is commonly used in the electrical circuits of pad-mounted transformers, submersible transformers, and switchgear, providing an insulated outgoing line connection.

The bushing well functions by providing a connection point for a load-break bushing insert. Inserts insert into the universal bushing well as an internal load-break bushing. You have an entirely sealed, insulated connection between the bushing well and insert to protect electricians and system components.

Coupled with other cable accessories like the rotatable feed-through insert or bushing insert, the 15kV/24kV 200A Bushing Well is extremely versatile in deployment. It’s rated to carry high currents up to 200A and 15kV-24kV voltages, so it is suitable for medium-voltage usage.



Key Features and Benefits



High Voltage and Current Capacity:

The bushing well can operate at high voltages (15kV to 24kV) and can handle up to 200A of current. This makes it ideal for high-power applications such as transformers and switchgear.



Superior Insulation:

Bushing well body: This bushing well body is molded from good-quality insulation. This means the component is highly electrically insulated and has less potential for electrical fire or shock. With a companion product of equivalent rating, the bushing well makes for an entirely sealed insulating connection.



Versatility:

The 15kV/24kV 200A Bushing Well is very adaptable since it interlocks perfectly with the other key components of the electric system. It also works well with bushing inserts, rotatable feed-through inserts, and surge arrester inserts, which allows for design and installation versatility.



Load break Functionality:

The load break bushing insert fits into the universal bushing well and is just like an integral load break bushing. This is particularly useful when a flow needs to be interrupted to shield machinery and personnel. Load break feature: Disconnection and reconnection are safe in real systems for the least downtime and maximum security.



Durability and Long Lifespan:

The bushing well can withstand the elements and all that it is exposed to. It is made to last and withstand the test of time, so you won’t have to replace and rework it as often.



Safety Features:

The bushing well provides an insulated connection in all directions, fully shielded when paired with compatible products, making the entire electrical system far safer. This protection is crucial in a high-voltage environment where an accident can be catastrophic.



Ease of Installation and Maintenance :

The bushing Well is constructed to be installed quickly and easily. The threaded interface locks in load break bushing inserts securely, enabling simple assembly and disassembly when performing maintenance or repairs on the fly.
