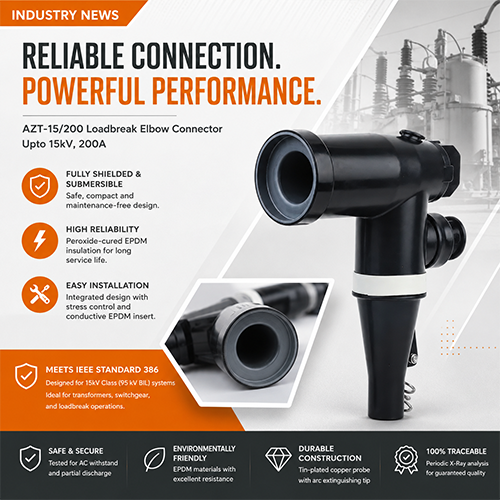

AZT 15/200 Loadbreak Elbow Connector: IEEE Certified Safe Connection for 15 kV Underground Distribution

The newly released AZT 15/200 separable load break elbow connector​ has been launched for global medium voltage power distribution markets. Designed for 15 kV class underground cable systems (95 kV BIL), this American style elbow accessory​ fully complies with IEEE Standard 386​ and IEEE Standard 592.

It connects underground power cables, pad mounted transformers, switchgears​ and load break bushings, and enables safe energized load make and load break operations​ for urban buried grids​ and industrial power supply projects.

The whole body adopts peroxide-cured EPDM rubber​ with an integrated multi-layer structure: built-in stress-control insert, insulating EPDM layer​ and outer conductive shielding jacket. The submersible fully-shielded design​ adapts to harsh underground environments. Its tin-plated copper conducting probe​ is fitted with an arc-extinguishing tip​ to switch live-line load current. A built-in capacitive test point​ supports quick live-circuit inspection​ during routine maintenance.

Complete structural accessories​ consist of an operating eye, compression lug​ and earth lead​ for compact cabinet installation. Full delivery kits​ contain the load-break probe, special installation wrench, compression connector, silicone grease​ and assembly hardware. Every unit undergoes periodic X-ray inspection, AC withstand-voltage​ and partial-discharge testing​ before shipment. The attached QR-code realizes 100% trace-ability​ for quality control, featuring high stability​ and maintenance-free service life.

With rising infrastructure demands across the Middle-East, African​ and overseas utility projects, this 200-amp elbow connector​ perfectly matches American-style ring-main units​ and underground transformers, becoming a competitive cable-accessory option​ for international electrical suppliers.
