Why Rotatable Feed-Thru Inserts Are a Must-Have for Modern Medium-Voltage Distribution Networks

As medium-voltage distribution systems keep evolving toward better reliability, easier maintenance, and more operational flexibility, more and more utilities and EPC contractors are turning to Rotatable Loadbreak Feed-Thru Inserts for transformer and switchgear setups.

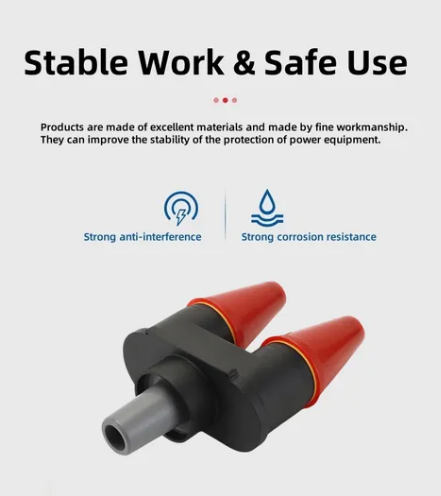

Rated for 15kV and 25kV, 200A distribution systems, the ASTT-200 Rotatable Feed-Thru Insert is a highly practical solution. It lets you convert radial-fed transformers into loop-feed configurations, and adds an extra loadbreak interface ideal for surge arrester installation or future network expansion. This type of separable insulated connector is widely used in underground distribution systems, and fully complies with the interface standards of IEEE 386.

Built for Reliable Field Performance

Unlike regular feed-thru inserts, the ASTT-200 features a 360° rotatable mechanism with a torque-limiting ratchet. This lets installers position elbow connectors in the most convenient direction, with zero risk of damaging the bushing stud during installation.

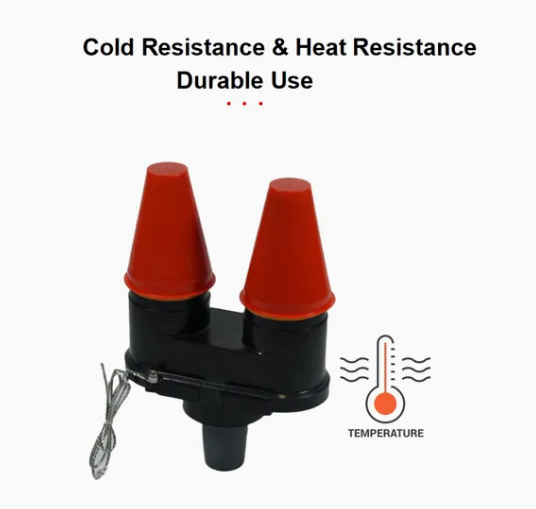

The insert is manufactured with high-quality peroxide-cured EPDM insulation, delivering excellent electrical insulation, weather resistance, and long-term aging performance – built to hold up in harsh outdoor environments.

Other key design highlights:

• · 200A loadbreak operation
• · Available in 15kV and 25kV voltage classes
• · Conductive EPDM shield
• · Arc snuffer assembly for safe switching
• · Finger contact design for stable current transfer
• · Stainless steel locking structure
• · Fully interchangeable with all products built to IEEE 386 dimensions

Designed for Utilities Worldwide

The ASTT-200 is a great fit for:

• · Pad-mounted transformers
• · Ring Main Units (RMU)
• · Compact substations
• · Underground distribution networks
• · Renewable energy distribution systems
• · Utility maintenance and retrofit projects

Its compact structure helps utilities simplify network expansion, and cuts down installation time – especially when working in tight, confined spaces.

Quality You Can Count On

Every ASTT-200 goes through strict manufacturing and quality verification, including:

• · AC withstand testing
• · Partial discharge inspection
• · Periodic X-ray analysis
• · 100% product traceability via QR code management

These quality controls ensure dependable, long-term operation even under demanding service conditions.

Key Specifications

For utilities and distributors looking for reliable medium-voltage cable accessories, the ASTT-200 strikes the ideal balance of safety, interchangeability, and installation flexibility.
