What is a Load Break Switch Used For?

Understanding the Purpose

A load-break switch is a switch to open or close a circuit when current is passing through the switch. This differs from a standard isolator or disconnect switch, which is only used when the current is already off.

They are largely used in:

● Medium-voltage distributions networks

● Transformer stations

● Ring main units (RMUs)

● Electrical systems of the industry

These switches provide flexibility of operation as well as minimize the chances of arc flash and damage to the system during power transfer or emergency shutdown.

How Does a Loadbreak Switch Work?

The major role of this switch is to safely handle the load under on/off operation. It opens the circuit even when current is passing through the use of arc-quenching materials and insulating mediums and is able to efficiently deal with the heat and spark produced. This makes them a safe and dependable substitute for older switching methods.

Most of these switches are equipped with either manual or motorized controls. Manual forms are opened and closed via a handle, whereas motorized forms can be operated remotely - this enables quicker and safer operations when there is a power fault or the device needs service.

Role of Oil-Immersed Switches

Oil immersed switch is one of the common types used in distribution systems. In this design, the moving and contacting parts are enclosed in a sealed tank and then filled with insulating oil. The oil assists in two ways:

● It acts as an insulator.

● It cools the parts and reduces the arc that is formed during switching.

This is particularly handy when the application involves high-load or high-voltage, where the switch must continue to work under a stressed environment.

Another characteristic of oil switches is their durability and low maintenance requirements. Oil-immersed switches are also used in many outdoor/rural power installations because they are able to handle harsh conditions very well.

Benefits of Using an Oil Immersed Load Break Switch

The Oil Immersed Load Break Switch is specifically designed to handle high-voltage operations safely and effectively. These switches offer several advantages:

● Improved arc control: The oil suppresses arc formation during switching

● Better insulation: Reduces the risk of current leakage or short circuits

● Reliable in tough environments: Suitable for outdoor or remote areas

● Compact and durable design: Fewer moving parts mean fewer breakdowns

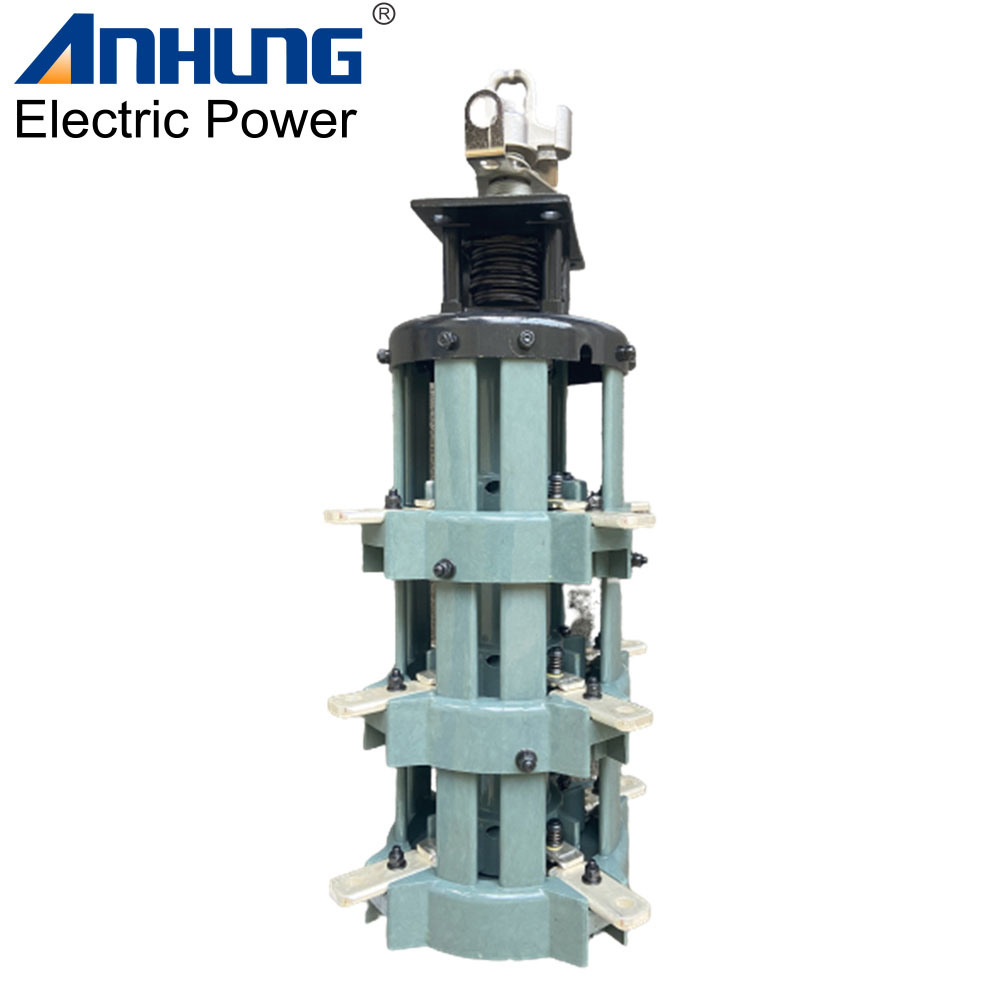

For example, this 38kV 630A Type Four-Position Oil Immersed Loadbreak Switch is ideal for use in high-voltage systems. It offers multiple switching positions and is designed for consistent performance in oil-immersed systems.

Where Are Load-Break Switches Commonly Installed?

These switches are commonly installed in:

● Ring Main Units (RMUs): To ensure uninterrupted power supply in looped networks

● Distribution Substations: For efficient load management and fault isolation

● Transformer Protection: To isolate the transformer during faults or repairs

● Industrial Plants: For safely switching machinery and sections of the plant

Their compact design, simple operation, and high reliability make them a go-to choice for many utilities and industries.

Maintenance Tips for These Switches

These switches can be used in the long-term, but following a couple of maintenance tips will help make them last longer:

● Periodic checking of outer components for wear or corrosion

● Observing oil levels and indicating of any leakages

● Switch operation testing at scheduled shutdowns

● Clearing, cleaning and tightening of all terminals and connections

Preventive maintenance will prevent the unexpected breakdowns and will guarantee that your switch will operate when you need it the most.

Conclusion

Load break switch is an important component of the medium-voltage electrical apparatus. It is safer and convenient than conventional isolators, because it can interrupt the circuit under load. Whether you need a high-voltage outdoor application with an oil immersed switch, or a more modern switch located in a transformer station, this switch will check all the boxes and provide a sense of security and better control.
