Product Structure of Surge Arrester

Date:10-13-2021

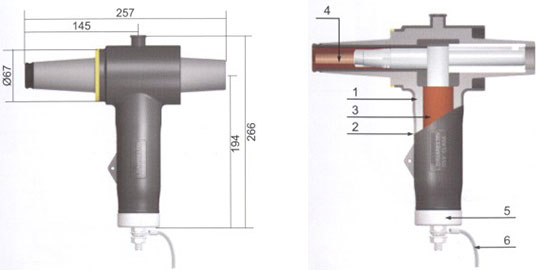

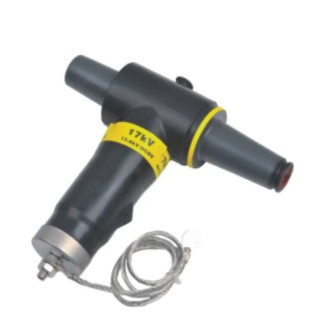

AHBLQ-17/50 Surge Arrester Insert

2

17/50kV Surge Arrester Insert is widely used on medium voltage network, such as transformers switchgears and cable and others, Used together with loadbreak cable accessories such as bushing elbow connectors and insulted protective cap.

Product structure:

1. EPDM INSULATION: unique formula and mixing technology to ensure the high quality of prefabricated EPDM insulating rubber;
2. Semi-conductive Shield: prefabricated EPDM conductive rubber meets the IEEE592 standard;
3. Surge arrester core: it is composed of zinc oxide arrester valve plate treated by special process;
4. Arc extinguishing chamber: when the cable connector is plugged and unplugged, it can effectively eliminate the impact of arc on the product;
5. Copper bottom cover: The copper bottom cover is tightly integrated with the outer conductive layer of the arrester to effectively waterproof the arrester and provide a grounding point for the arrester;
6. Grounding wire: The grounding wire that comes with the lower end of the arrester is used to effectively connect the lightning impulse voltage to the grounding position.

2

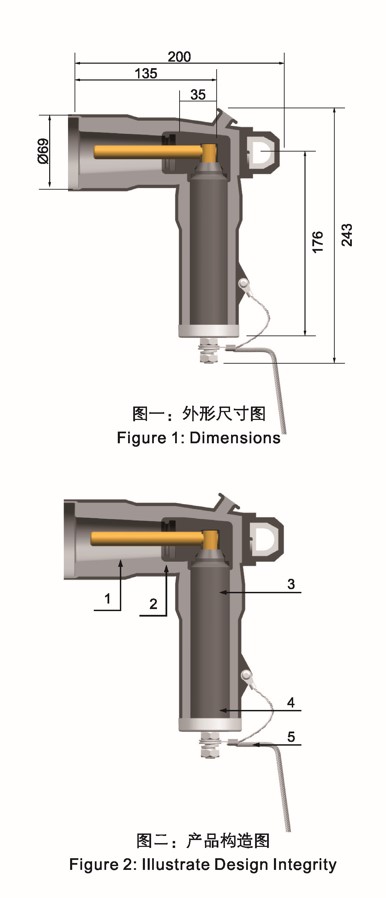

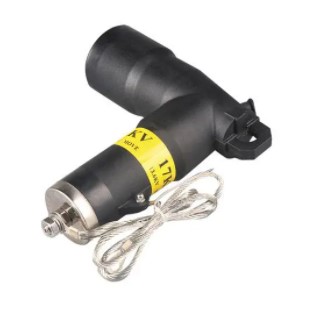

AH BLQ-17/50 Elbow Surge Arrester

2

17/50kV loadbreak Elbow Surge Arrester with silicone rubber connector housing and installed on the 200A Load break bushing extender. It protects medium voltage network, for example: transformers switch gears and cable. Incoming over voltage waves and voltage increase by reflection are limited.

product structure

1. Insulation layer: The unique formula and mixing technology ensure the high quality of prefabricated EPDM insulating rubber.
2. Outer semi-conductive layer: the prefabricated EPDM conductive rubber meets the IEEE592 standard.
3. Surge arrester core: it is composed of zinc oxide arrester valve discs that have undergone special process treatment.
4. Copper bottom cover: The copper bottom cover is tightly integrated with the outer conductive layer of the arrester to effectively waterproof the arrester and provide a grounding point for the arrester.
5. Grounding wire: The grounding wire that comes with the lower end of the arrester is used to effectively connect the lightning impulse voltage to the grounding position.

2

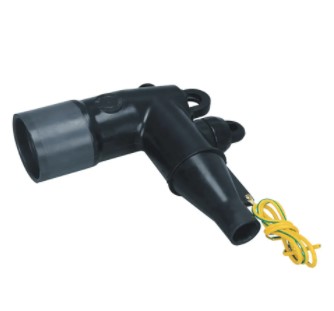

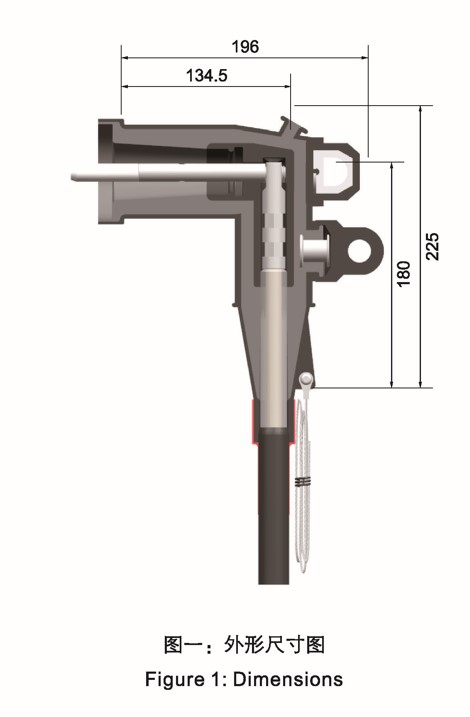

AHZT-25KV/200A Elbow Connector

2

25kV 200A Load break Elbow Connector is a fully-shielded and insulated plug­in termination for connecting underground cable to distribution power system of pad-mound transformer, surrounding power supply branch box, cable branch box equipped with load break bushings. The elbow connector and bushing insert comprise the essential components of all load break connections. It can meet the demand of lines in nuclear.
