Launch Update: DIN-12/250 Porcelain Transformer Bushing – 12kV/250A, Fully QC-Validated for Distribution Transformers

We are rolling out our DIN-12/250 porcelain transformer bushing, a 12kV/250A rated solution engineered for oil-immersed distribution transformers. Built to meet growing demand for dependable, cost-effective HV insulation components, this bushing is optimized for utility, industrial and distributed renewable energy transformer fleets.

Part of our full 1kV–66kV transformer bushing portfolio, the DIN-12/250 acts as both the high-voltage lead-out terminal and a structural mounting part. It provides full electrical insulation between the live conductor and transformer tank, while securing the lead wire against mechanical stress and short-circuit overheating.

The unit incorporates our patented gasket-shield sealing structure – a design already widely adopted and recognized by transformer OEMs for its long-term oil tightness and aging resistance.

Core Technical Specifications

Rated for 12kV system voltage and 250A continuous current, the bushing delivers a creepage distance of ≥295mm, making it suitable for moderately polluted environments. It operates reliably across an ambient temperature range of -55°C to +40°C, at altitudes up to 1000m; a strengthened pollution-proof version is available for sites up to 2500m above sea level.

Key performance values:

30kV power frequency withstand voltage (1 minute, dry)

75kV lightning impulse withstand voltage (full wave)

Partial discharge level <10pC at 12kV rated voltage

1000N cantilever load capacity

Quality & Qualification

Every DIN-12/250 bushing completes a full in-house QC inspection before shipment, aligned with our internal product specification AH.DDA.001. The qualification test program includes:

Power frequency withstand voltage test: 30kV applied for 1 minute, no breakdown or flashover

Partial discharge measurement: PD <10pC at 12kV

Sealing test: 0.3MPa internal pressure held for 20 minutes with zero leakage

Full dimensional and visual inspection against engineering drawings

Mounting & Compatibility

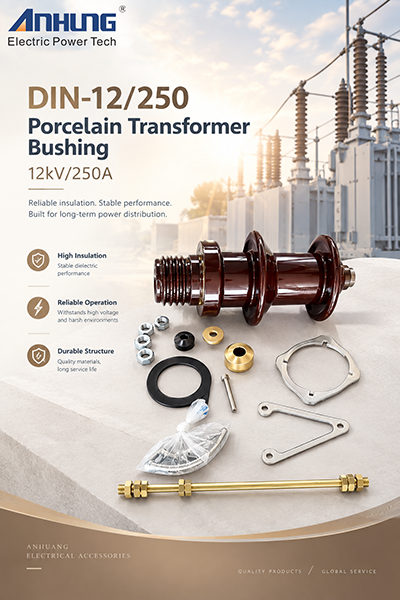

The bushing supports vertical, inclined and horizontal mounting positions, and fits standard transformer tank openings of Ø78mm. It is supplied as a complete set with all mounting hardware – including pressure plate, nitrile rubber sealing ring, discharge electrode and brass conductive rod – for straightforward drop-in installation. The top vent design allows proper air bleeding during transformer oil filling.

“For distribution transformers, bushing reliability directly impacts asset uptime and maintenance costs,” said our Technical Sales Manager. “This DIN-standard bushing combines field-proven porcelain insulation with our optimized sealing structure, giving customers a reliable, easy-to-install solution for harsh operating conditions. We have already shipped initial production batches to customers in the Middle East and Southeast Asia, with strong early feedback on sealing performance and installation speed.”

The DIN-12/250 is available for immediate order, with custom current ratings and creepage distance options for project-specific requirements. For full datasheets, sample requests or project inquiries, contact our sales team.
