Introducing the 24kV 630A Deadbreak Separable Connector

1. Overview of Separable Connectors

A separable connector is a high-voltage component designed to connect and disconnect cables quickly and securely. Often referred to as a deadbreak separable connector, this type of connector can only be engaged or disengaged when the circuit is dead, ensuring safety for technicians and preventing arc flash incidents. This makes it ideal for maintenance and service work, especially in substations and underground systems.

2. Key Features of the 24kV 630A Deadbreak Separable Connector

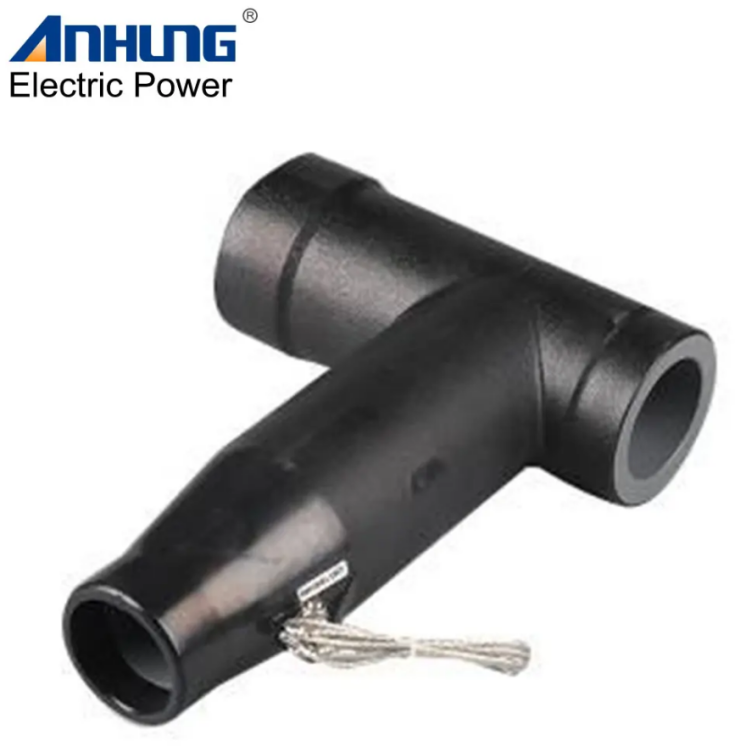

The 24kV 630A T Cable Connector is a powerful solution for high-voltage electrical applications. This connector type is specifically designed for connecting polymeric cables to equipment like transformers, switchgear, and motors. Here are some of its most important features:

a. Fully Screened and Fully Submersible Design

The 24kV 630A T cable connector is fully screened, meaning it is encased in a conductive layer that ensures consistent voltage distribution and minimizes electrical stress. This screening enhances operator safety and extends the lifespan of the connector by reducing the risk of partial discharges, which can deteriorate the insulating material over time.

Additionally, it is fully submersible, enabling reliable performance even in harsh environments, such as underground or outdoor installations where the connector may come in contact with water. This submersible quality makes it suitable for installations where moisture and water exposure are constant concerns.

b. Compatibility with Premoulded Bushings and Plugs

When paired with the appropriate bushing or plug, the 24kV 630A T cable connector forms a fully insulated and secure connection. This compatibility with premoulded separable connectors allows for versatile use across a range of equipment. Premoulded designs ensure a tight fit and provide high resistance to external elements, ensuring stable and reliable connections in various conditions.

c. Capacitance Test Point for Easy Circuit Monitoring

One of the most valuable features of this connector is its optional capacitance test point. The test point provides a safe, accessible location to test circuit voltage levels, allowing operators to easily monitor the circuit status or install a fault indicator. This test point is beneficial for routine maintenance and diagnostics, helping technicians verify circuit integrity without having to disassemble connections, reducing downtime and enhancing safety.

d. Constructed from High-Quality EPDM Rubber

The 24kV 630A T cable connector is constructed from EPDM (Ethylene Propylene Diene Monomer) rubber, a high-quality, durable material known for its flexibility, weather resistance, and electrical insulation properties. EPDM provides exceptional performance in high-voltage applications, as it withstands temperature variations, UV exposure, and electrical stress without degrading. This construction ensures that the separable connector remains reliable over time, even in challenging environments.

3. Applications of the 24kV 630A Deadbreak Separable Connector

The 24kV 630A separable connector is an essential component for industries and applications where high-voltage cable connections need to be safe, reliable, and flexible. Common applications include:

• Power Distribution Systems: Ideal for substations and switchgear, the connector facilitates safe connections between power distribution equipment and cables.
• Transformers: Provides a reliable interface for connecting medium-voltage cables to transformers, ensuring safe power flow and reducing the risk of electrical faults.
• Motors: Particularly in industrial applications, the connector is used to connect cables to high-voltage motors, ensuring stable operation.
• Renewable Energy Installations: Renewable energy sites, such as wind and solar farms, often require robust connections to handle high-voltage output from generators to transformers and switchgear.

By offering a fully submersible, deadbreak design, the 24kV 630A connector provides peace of mind in these demanding applications, where equipment failure can lead to costly downtime and safety risks.
