Date：06-07-2025

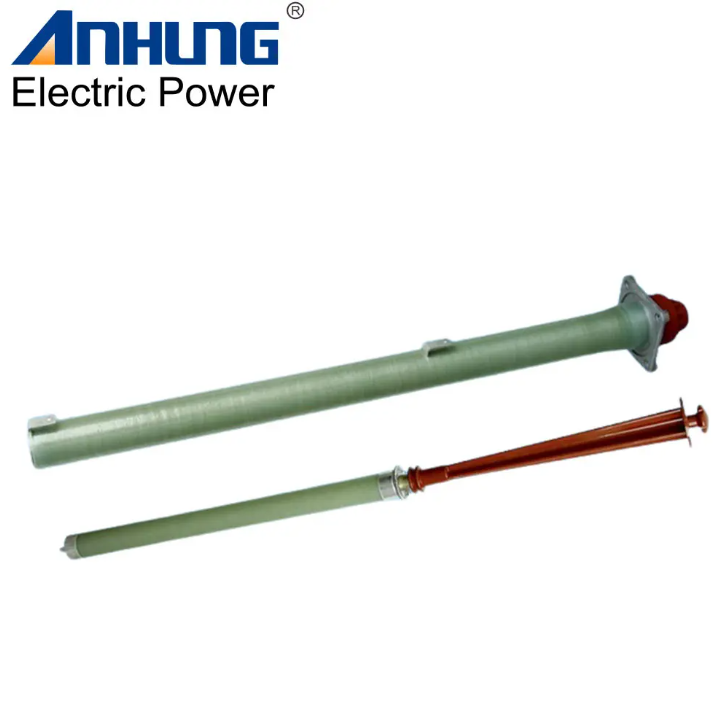

As the world advances in wind power generation, the safety and functionality of its electrical components is of utmost importance. The XRNT (XDR20)-40.5 High-Voltage Current-Limiting Fuse is designed to protect, among other things, wind power transformer system units. Its service is critical in averting overloads and short circuits in power transformers, as well as other electrical equipment. This device works in AC 50 Hz power systems with a rated voltage of 40.5kV.
The fuse is part of an advanced high-voltage current limiting fuse family and serves as a protective device for electrical circuits. It performs a crucial task of cutting off the circuitry when a preset value of current is exceeded which may cause damage to the transformer or other power equipment. This fuse accomplishes that when its internal conductive part melts rendering the circuit inoperative long before dangerous currents that can lead to overheating or fire are allowed to pass through.
This type of fuse is installed in American box transformers, which are frequently utilized in wind generating power systems. It seamlessly works with other electrical devices to improve the protection of the system without putting in danger the continuity and security of power transmission.
1. High Voltage Protection
It is suitable for high-voltage power systems like wind power plants and industrial energy systems. This specific fuse type is constructed for 40.5 kV power systems lightly showcasing its voltage rated capacities. As expected, the high-voltage rating of this fuse indicates that it can withstand considerable electrical loading without failure which makes it essential in high-energy surroundings.
2. Current-Limiting Feature
Currently, the type of fuse under discussion is a current limiting fuse which, per its name, can cut off extremely high current flows very fast which is helpful in protecting the rest of the components in a system. When a short circuit occurs, the fuse works within milliseconds in order to keep critical power infrastructure from getting dangerous surges. Because of this rapid response the rage of equipment and operational ensures that the equipment ranges are protected and kept intact.
3. Thermal Triggering for Safe Opening of the Circuit
Due to the principle of thermal triggering, the fuse turns off the current supply to the circuit. In this case, the supply of electric current gets interrupted while the electric components remain untouched and stand protected. Further, a fusible element that is triggered by high temperatures is used in conjunction with the components that must not be allowed to pass given the time for a particular duration. That helps disconnect power without any risk of overheating, electric fire of enabling damage to the elements in place. Given this certain and reliable edge make it ideal solution for The Wind Power Transformer Protections which require steady and constant protection.
4. Scope of use in Power Systems
This high-voltage current-limiting fuse has applications in for example:
Transformers for wind power- Protecting Energy conversion systems in wind farms.
Power Distribution Networks- Improving safety in industrial and grid energy Distribution system.
Electrical cabinets and substations- Preventing overload damage in high voltage environments.
Protection of industrial facilities- Protecting heavy machinery, Power control systems, and other devices require reliable protection.
5. Long lasting dependability
Using high grade materials, the XRNT(XDR20)-40.5 fuse is built for enduring structural integrity and strength. It is optimally checked for quality control so that it surpasses set safety requirements, thus making it reliable for use in high-voltage applications.
How does it function?
Detection of broken current flow in the system renders the high voltage current limiting fuse idle. The fuse has a set limit of electrical current, when the current exceeds that value, the level of heat generated in the fuse causes the internal strip to induce melting and thus resulting in rupture of the circuit. The system thereby is defended from receiving excess electrical energy which we would result in decreasing the precious components of the system and damaging it severely.
This mechanism can be illustrated by the below steps:
This mechanism allows for constant protection over the power systems, lessening the chances of equipment failure and expensive repairs.
1. Best Safety Arch Features
For the best safety features, the XRNT (XDR20)-40.5 divison is designed to tackle high voltage usage. It’s current limiting abilities thus protecting transformers and other sectors of the power enabling all infrastructure from fires and electric short circuit damage.
2. Active Control for Wind Power Transformers
Wind power transformers suffer from a lot of electrical damage due to the harsh conditions. This fuse is capable of active control of power for uninterrupted flow thus prolonging the working life of power transformers.
3. Outstanding Reliability and Performance
Due to rigorous quality control processes, the XRNT (XDR20)-40.5 fuse system is known to possess high reliability and performance. It is frequently adopted both domestically and internationally and yields consistent results in wind power and industrial applications.
4. Flexibility with Compounding Systems
This fuse is extensively accepted as it is compatible with American box transformers, electrical distribution cabinets, and other power management systems. Due to its versatility, it can be integrated into several power infrastructure setups.
5. ANHUANG: A Reliable Manufacturer
With over 20 years of experience, ANHUANG has earned a strong reputation for optimizing cost-effective, high quality, durable, and efficient electrical solutions. It operates as a leading manufacturer in the field of medium and high voltage electrical components that develop the XRNT (XDR20)-40.5 fuses.
About ANHUANG
Founded in 2004, ANHUANG specializes in the design and production of electricity powered products including medium-voltage electrical accessories. The company started with the production of high voltage fuses before expanding its product line to include lightning arresters, cable connectors, and full set cabinet solutions.
Key Highlights About ANHUANG – 20 years of experience in electric industry as industry expert.
Conclusion
The XRNT (XDR20)-40.5 High-Voltage Current-Limiting Fuse stands out as an ideal choice for those looking for dependable and multifunctional protective solutions for The Wind Power Transformer Protection. Fuses of this kind are specialized to guarantee flawless reliable operation and protection from interruption due to powerful overloads in highly advanced high-voltage power networks.
Customer can further investigate this product here: ANHUANG XRNT (XDR20)-40.5 Product Page
