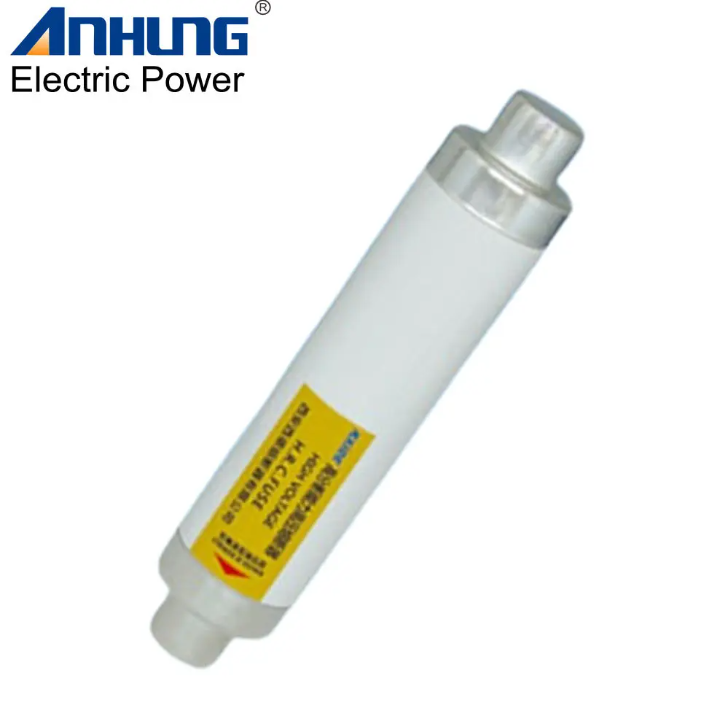

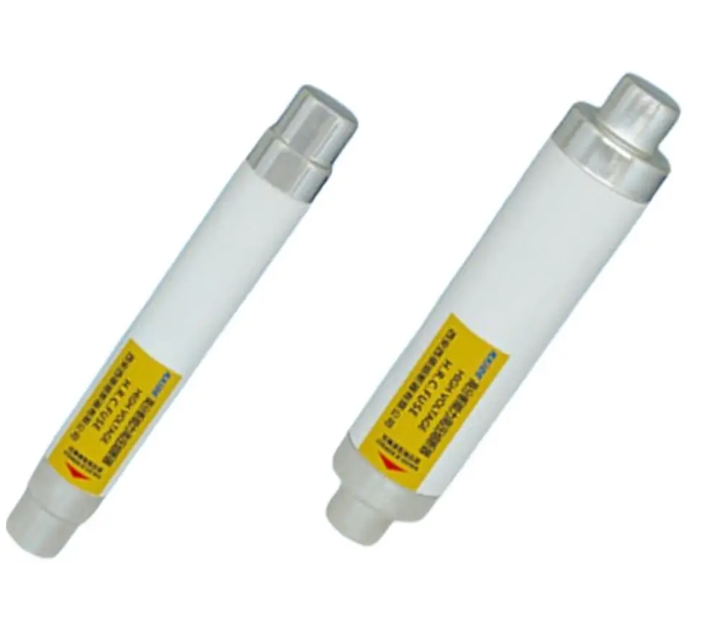

Let’s tackle the most pressing issue, if you are managing high-voltage transformers, you need strong protection. Meet the transformer’s High Voltage Current Limiting Fuse - the last line of defense against overloads and short circuits. It is tempered to the most extreme electrical condition to give power systems a running chance without damage.



Why Care?



Power systems are the most unpredictable of the lot. A short circuit can render your transformer useless with immense downtime, financial loss, equipment damage, or pose dire safety challenges. That is why a current-limiting fuse is a necessity.



The design features on these fuses are crafted in an artistic manner that allows them to cut off fault currents in the fastest way possible to limit damage and prevent catastrophic electrical failure. It serves as the first line of protection for an intricate web of electricity.



Excessive fault currents put all associated transformers and electrical circuit devices ensure security to using these devices. The The High-Voltage Current Limiting Fuse features complete range protection, which enables it to cope with small overloads and greater short circuits of up to 50KA. With this level of protection, transformers together with the associated electrical devices are spared from damages throughout all conditions. The level of security makes sure that the lifetime of the devices is prolonged, enabling dependable systems.







What Makes This Fuse Special?



This particular fuse is designed with a lifespan far ahead of the traditional fuse: it is a high-breaking capacity fuse, meaning it does not get damaged when it interrupts high fault currents. But what more is there to know? Let’s break it down:



Small Current Protection – Handles Minor Overloads Smoothly



Fuses also have the ability to withstand small-scale changes in current, which will normally not require the system to be immediately powered off. This fuse is specifically designed to manage certain levels of insulation damage without complete operational shutdown by removing current fault indications or gradual weakening cues.



A prime example would be a transformer that is slightly overloaded from the power demand: it has an increased load but is not quite crossing the maximum limit. This fuse enables the transformer to run within a certain safe limit while controlling risks adequately.



High Breaking Capacity - Cuts Off Huge Fault Currents Instantly



Transformers are very likely to be damaged in case of a severe short circuit. The risk factors for damage due to high fault currents increases multi conceptually as lots of heat and force is mechanically pumped . The fuse is made for precisely these applications: to tackle very carefully and very fast any high energy pausing parts that need isolating while ensuring no further damage is done.



This fuse, with its exceptional breaking capacity, can withstand short-circuit currents of up to 50KA, making certain that destructive faults are removed well before they develop into critical electrical failures. This feature is very important for keeping fires, explosions, and a total collapse of the power system under control.



Complete Range Protection – Addresses Every Single Fault Scenario



Unlike traditional fuses that only fix certain faults, the High-Voltage Current-Limiting Fuse has an all-inclusive scope of coverage that safeguards all fault conditions. This fuse addresses everything from minor overloads to the most powerful short circuits, thereby guaranteeing the stability of the electrical system.



This fuse combines small current protection with high breaking capacity to provide operators with an all-encompassing solution that protects them in every situation. As a result, there is no longer any need for a multitude of protective devices, and the complexity of the electrical system is significantly reduced without compromising security.



Where Can You Use It?



This fuse is widely used in industrial, commercial, and utility applications that depend on reliable voltage. As a result, this 12 KVA rated fuse has become standard practice for power transformers and other high voltage equipment. It is also used in stationary AC 50Hz systems.



Industrial Power Systems



Heavy industry, manufacturing plants, and factories depend on a steady and dependable supply of power to run their machinery and production lines. In these settings, a transformer failure results in enormous financial losses due to production halts. Installations of this High Voltage Current Limiting Fuse,for Power Transformer Full Range Protection are a must in these environments to avoid electrical failures, guarantee operational continuity, equipment protection, and damage minimization.



Commercial Buildings



Commercial structures such as office complexes and shopping malls store a huge amount of data which needs to be organized and available for instant retrieval while shutting down data services also introduces financial impact. All these depend on reliable electrical systems. This fuse acts as an assurance that power distribution networks are secure and programmable logic controllers (PLC) isolate system faults before they escalate into major trouble.



Utility Power Distribution



Comprehensive engineering solutions while ensuring minimized grid instability and the protection of substations and distribution transformers is what power utilities require. This fuse is instrumental to avoiding large scale outages and blackouts while ensuring critical infrastucture is protected, systems are in working order, and efficiency throughout the system is optimized.



Enhanced System Operations



Fusible by ANHUANG, a manufacturer specialized in mid level voltage components, this fuse isn’t just reliable, it’s a revolutionary advancement. Since 2004, when ANHUANG began designing and producing cutting-edge electrical components, they have become a leader in the industry.



By focusing on quality control and the high-efficiency manufacturing of electrical protection solutions, ANHUANG has positioned itself as an industry leader. The company ensures precision engineering and innovation for each fuse to guarantee international safety compliance and optimal performance.



ANHUANG’s products are utilized by major companies throughout China and are exported to numerous countries such as Italy, the USA, and Russia. With the flexibility to offer OEM and ODM services, ANHUANG becomes a favored collaborator for other businesses looking to tailor these products to their precise specifications.



Installation and Maintenance – Simple & Efficient



The ease of installation and maintenance of the High-Voltage Current-Limiting Fuse is a standout feature. Unlike its counterparts, this fuse can be effortlessly substituted with little downtime to operations.

Maintenance that should be performed on a regular basis includes:

• Routine checks of the unit for indications of damage or excessive wear.
• Performing electrical disconnection to enhance efficiency on redundant connections.
• Replacing fuses as part of maintaining operational effectiveness of the system.

These procedures will sustain the electrical system’s durability and mitigate the chances of facing unanticipated malfunctions.





Conclusion



Never take chances when it comes to your power systems. Malfunctions are multi-faceted problems that require a great deal of resources, both monetary and temporal. Acquiring an Intelligent Power Current Limiting Fuse gives you peace of mind in knowing that your equipment is given ease of use, simplification, and premium protection.
