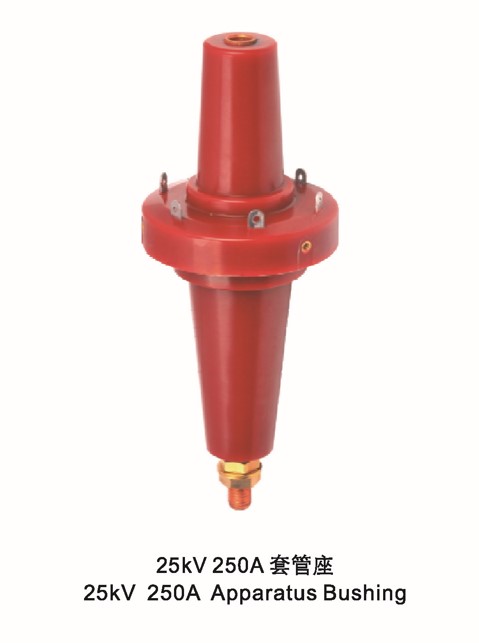

25 kV 250A Apparatus Bushing

Date:03-29-2022

25 kV 250A Apparatus Bushing provide the interface for the 200A Cable connector and mostly used on the oil-insulated(R-temp, hydrocarbon, or silicon apparatus, including switchgear, transformers, and capacitors)
The Apparatus Bushing are molded using high quality Epoxy Rubber, mee the requirement of standard EN50180/EN50181 DIN47636/HN52-S-61.

111

Kit Contents:

●Apparatus bushing
●Covering cap
●Installation instruction sheet
●Quality certificate

Order Information:

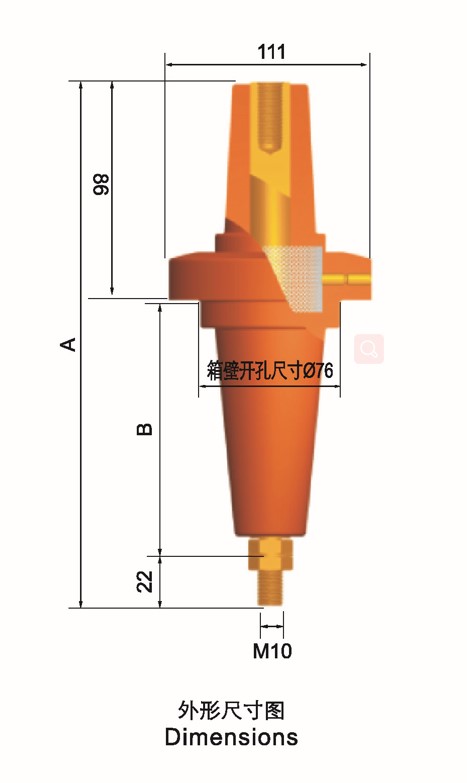

Description Reference No. Length(A) Length(B)
24kV 250A Apparatus Bushing(standard) AH TGZ-24/250 224 108
24kV 250A Apparatus Bushing(short) AH TGZ-24/250S 189 73
24kV 250A Apparatus Bushing(long) AH TGZ-24/250L 284 168
