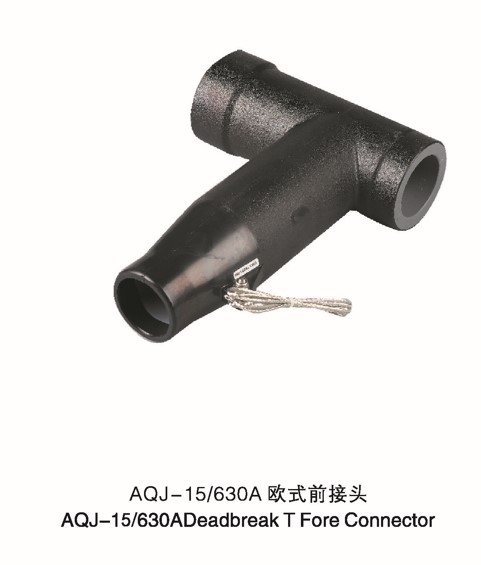

15kv 630A Deadbreak T fore Connector

Date:03-25-2022

15kv 630A Deadbreak T fore Connector

Through the 630A prefabricated cable front connector, single-phase or three-phase cable switch cabinets, transformers, cable distribution boxes and other electrical equipment can be connected.

Suitable for indoor or outdoor installation.

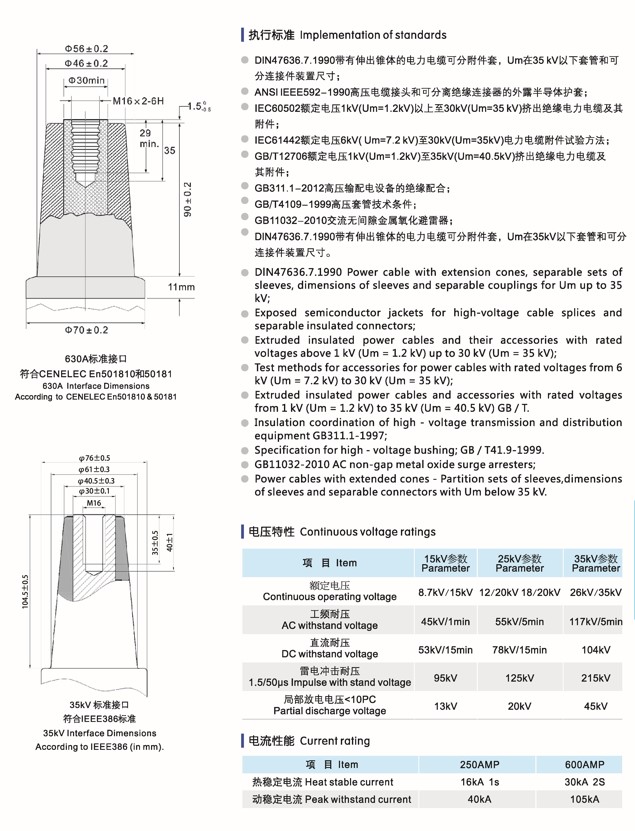

Application:
For connection of polymeric cable to transformers, switch gear, motors and other equipment with a pre-molded separable connector.
For indoor and outdoor installations.
System voltage up to 24 kV.
Continuous current 630 A (900 A overload for 8 hours).
Cable particulars:
- Polymeric cable (XLPE, EPR, etc.)
- Copper or aluminum conductors
- Semiconducting or metallic screens
- Conductor size 12kV 25-120 mm2 24kV 25-400 mm²

222

Features:
Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug.
Can be used under the circumstances
Built-in capacitance test point to determine the circuit status or install a fault indicator.
No minimum phase clearance requirements.
Mounting can be vertical, horizontal, or any angle in between.

Installation:
When finish the installation of elbow connector, the power can be supply directly.
According to the Installation Instruction Sheet

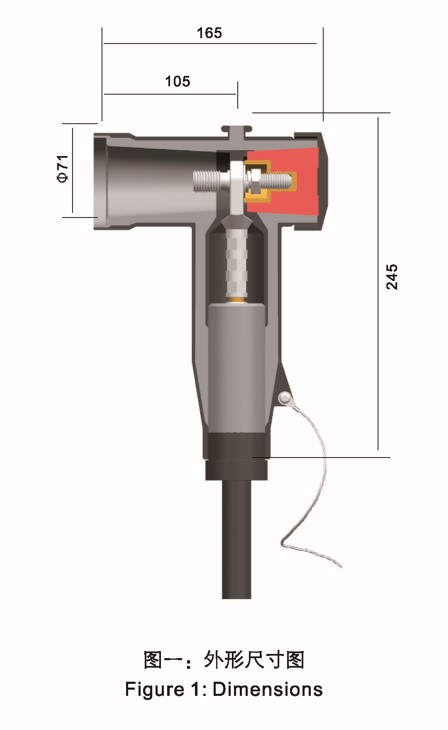

Product Structure:(any other special requirement, please contact our sales engineer)

444

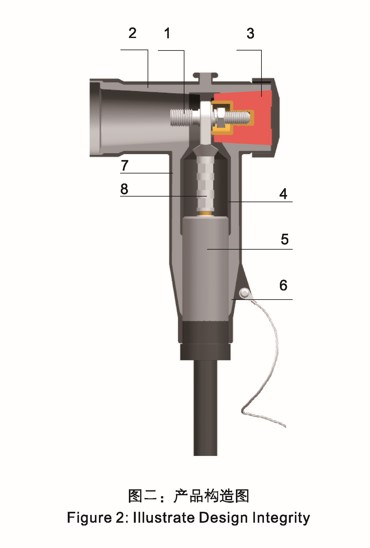

Product Structure:

1 TWO HEAD SCREW: To make sure have a good contact with the apparatus bushing.

2,INSULATION: Molded EPDM insulating rubber is formulated and mixed in-house to ensure high quality.

3,INSULATING PLUG: Molded epoxy insulating plug provides excellent electrical,thermal and mechanical reliability.

4,SEMI-CONDUCTIVE INSERT: Molded EPDM conducting rubber screen controls electrical stress.

5,STRESS RELIEF: The configuration of the outer screen and the cable adapter provide cable stress relief.

6,GROUNDING EYE: Molded into the extremal screen for connection of an earthing wire.

7,SEMI-CONDUCTIVE SHIELD: Molded EPDM conducting rubber mates with the cable screen to maintain screen continuity and ensure that the assembly is at earth potential.

8,CONDUCTOR CABLE LUG: Aluminum compression connector is sized to ensure a cool running connector with maximum current transfer.
