Product Overview

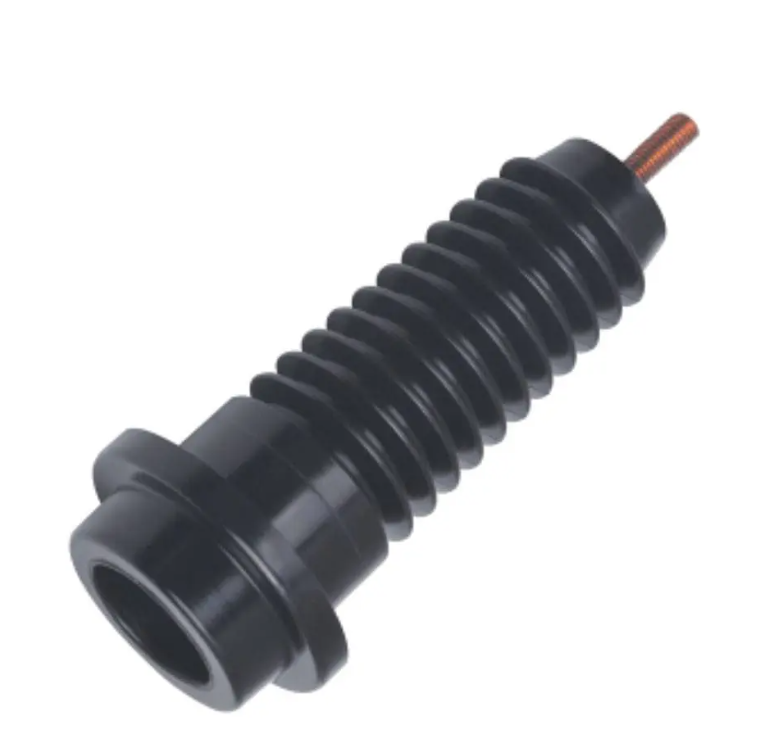

15kV 200A Extended Insulated Loadbreak Bushing Well. Designed to support the requirements of medium-voltage networks where power distribution must be secure and reliable. This is a perfect electrical component to connect all the elements of an electrical system, such as transformers, cable supply cabinets, and switch cabinets, with unimpeded operation.
The most basic configuration features a 200A 15kV insulation for applications where medium-voltage systems are preferred. Longer insulation life also offers greater protection from electrical fires, electrical shocks, and damage from being exposed to the elements.
This load breaks the bushing well and has multiple connectivity options compatible with bushing inserts, rotatable feed-through inserts, and surge arrester inserts. This versatility means that the bushing can be effectively used in a range of applications by professionals, whether they’re retrofitting existing systems or installing new ones.
Key Features
15kV 200A: This 15kV 200A Insulated Loadbreak Bushing Well is ready to accommodate any 15kV medium-voltage system and is a strong choice for any installation where continuous power distribution is essential. Its 200A rating means it can take on massive electrical currents while supporting critical systems without compromising safety or performance.
- Fully Insulated: One of the best parts about this bushing well is that it is extended with insulation, so the connections of electricity are not affected even in extreme conditions. The insulation will prevent workers and end users from accidentally coming into contact with high-voltage wires. The insulation is also less prone to arcing, short-circuiting, or power outages, so it works for many years.
- Multiple Interfaces: The 15kV 200A Insulated Bushing Extender can be used with different accessories, such as bushing inserts, rotatable feed-through inserts, and surge arrester inserts. It’s flexible, allowing electrical installations to be configured according to specific requirements and allowing professionals to customize their installations on the go.
- Durable & Reliable: The bushing well is rugged enough to handle outdoor conditions, which means that it will work reliably no matter what. When the weather, temperature, or mechanical pressure puts the bushing well under pressure, it will keep on operating without compromising structure or safety.
- Easy to Install: The 15kV 200A Extended Insulated Loadbreak Bushing Well is quick and easy to install, thanks to the easy-to-follow installation instructions. This avoids downtime during system installation and makes the devices compatible with legacy electrical systems.
- Applications in Other Systems: The bushing well can especially be used in transformers, outdoor cable supply cabinets, and switch cabinets. It makes it safe to connect cables and electrical equipment securely for both industrial and residential applications. It is well-insulated, which is convenient in any place with high humidity, or the outdoors is strong, and you need extra protection from electrical issues.
